multipurpose color corrugated steel sheet
Product Description
Product Name: multipurpose color corrugated Steel Sheet
Brand Name: Xinghan,ZG
Certification:ISO 9001-2008,SGS,CE,BV
Standard:AISI,ASTM,GB,JIS,BS,DIN
Base material: Cold rolled Steel Coil
Thickness:0.12-2.0mm
Width: 600-1500mm
Zinc coating: 30-275g/m2
Spangle: regular spangle,minimal spangle, zero spangle,big spangle
Surface treatment: unoil,dry,chromate passivated, non-chromate passivated
Material
Q195 Q215 Q235 SPCC SPHC
SPHDSGCC,SGCH,G550,DX51D,DX52D,DX53D
(low Carbon Steel )
Chemical composition C:0.06-0.12 Mn:0.25-0.50 Si<=0.30 P<=0.45
Tensile strength :315-430 (Mpa)
Coil ID:508mm
Coil Weight:3-5 Tons
Technique：Cold rolled

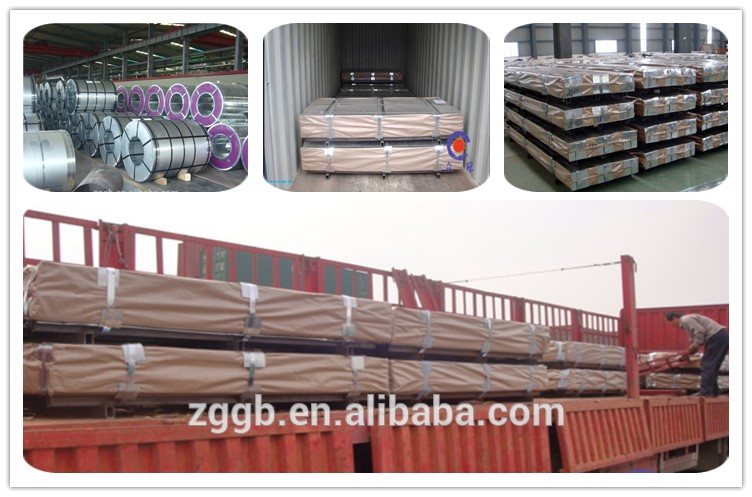

Package： Standard seaworthy export packing:
3 layers of packing, inside is kraft paper, water plastic film is in the middle and outside GI steel sheet to be covered by steel strips with lock, with inner coil sleeve.
Feature：Cold Rolled Steel Coils have excellent performance of decoration, corrosion resistance etc.
Applications:

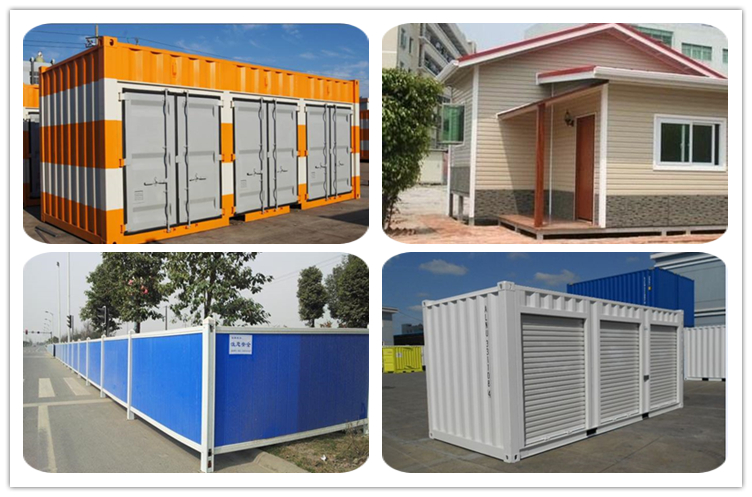

Guardrails, ventilation ducts, gutters and down spouts, Pre-paint and post paint applications, gutters and ceiling suspension bars, shutter door rails. Auto parts, electrical appliances, refrigerator appliances, signs, automotive parts,vending machines, washing machines, showcases and other structural use, roofing, commercial use.
Payment: T/T, LC, Western Union, Paypal

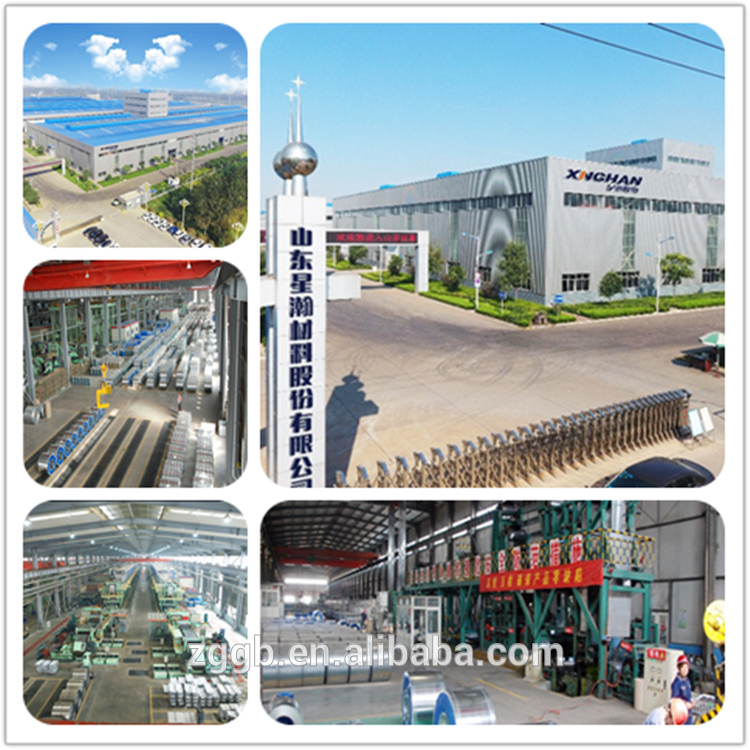

Shandong Xinghan Material Corporation(Primitive Name : Shandong Zhongguan Steel Plate Co.,Ltd.) was established in March 2006, with a registered capital of RMB 150 Million, a stuff over 1200.
The company has 15 production lines, including pickling line, cold rolled line, hot dipped(thicker) galvanized line, hot dipped galvalume line and pre-painted line. It can meet a annual output capacity of 1 million tons of pickling coils,1 million tons of cold rolled coils, 900000 tons of galvanized and galvalume sheets, 450000 tons of thicker galvanized sheets and 300000 tons of pre-painted sheets. Its production capacity now ranking a industry leader, Its thin-high strength galvanized and galvalume sheets production also ranking a leader in the nationwide.
At present,Xinghan’s main products are cold rolled steel,galvanized steel,galvalume steel ,color coated steel sheets and corrugated sheets. It can produce all kinds of high-quality sheets with a thickness rang from 0.12mm to 2.5mm,and width within 1250mm. Its advantaged thin -high strength steel sheets had exported more than 100 countries and areas in Africa, Europe, South America, South-east Asia, Middle Asia and other areas, that mainly used in roofing, wall construction, painting basis sheets and auto industry ect. And already gain a great population in the worldwide.
Product Categories : Corrugated Steel Sheet
